“Hi” series of products:compared with the same cooling rate requirements, the machine efficiency can increase by more than 30%.
Adopt 262K color high performance touch screen.
Adopt 128G data memory, can save real-time test data for a long time.
This series features world-class high-efficiency refrigeration technology. Compared with the same cooling rate requirement, the efficiency of the chiller can be increased by more than 30%. At the same time, it adopts a brand-new appearance style and a new generation of operating system, providing you with a new generation of climatic environment reliability test equipment that is easy to use, efficient, safe, capable of long-term data retention, and convenient for accessing test data as needed.
Prooduct Name |

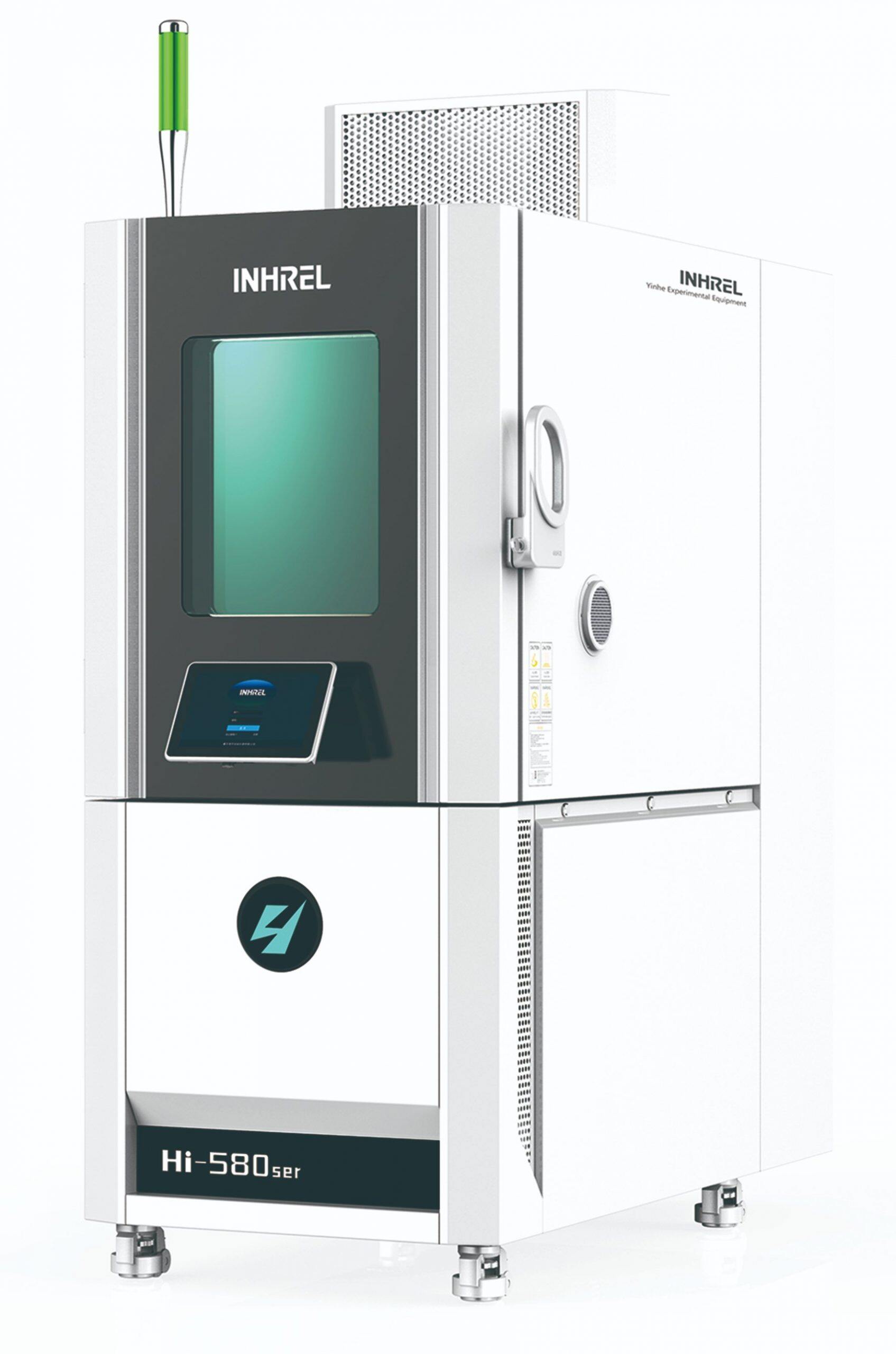

High-Low Temperature/Humid Heat Test Chamber |
Prooduct Model |
HC3-650/2F |
HC4-200/2F |
HC4-650/3F |
HC4/1500/2F |
HC7-200/6 |
HC7-330/8 |
HC7-1000/11 |
HC7-1500/19 |
Working chamber volume |
646L |
208L |
646L |
1595L |
208L |
326L |
1045L |
1512L |
Working chamber dimensions
(mm) |
W |
850 |
580 |
850 |
1100 |
580 |
580 |
1100 |
1100 |
H |
950 |
750 |
950 |
1000 |
750 |
750 |
1000 |
1000 |
D |
800 |
480 |
800 |
1450 |
480 |
750 |
950 |
1375 |
External dimensions
(mm) |
W |
1050 |
780 |
1050 |
1300 |
780 |
780 |
1300 |
1300 |
H |
2030 |
1830 |
2030 |
2080 |
1830 |
1830 |
2080 |
2080 |
D |
1840 |
1520 |
1840 |
2490 |
1520 |
1790 |
2065 |
3190 |
Heating/Cooling Rate |
2.1℃/min |
2.5℃/min |
2.7℃/min |
2℃/min |
5.9℃/min |
7.6℃/min |
11℃/min |
19℃/min |
Temperature range |
-30~+180℃ |
-40~+180℃ |
-70~+180℃ |
Temperature fluctuation |
±0.1~±0.5℃ |
Temperature uniformity |
1~2℃ |
Temperature deviation |
±0.5~±2℃ |
Humidity range |
10~98%RH |
Humidity fluctuation |
±3%RH |
Humidity uniformity |
5(10℃~85℃,﹥75%RH); 7(10℃~85℃,≤75%RH) |
Humidity deviation |
+2~-3 (﹥75%RH); ±5(≤75%RH) |
